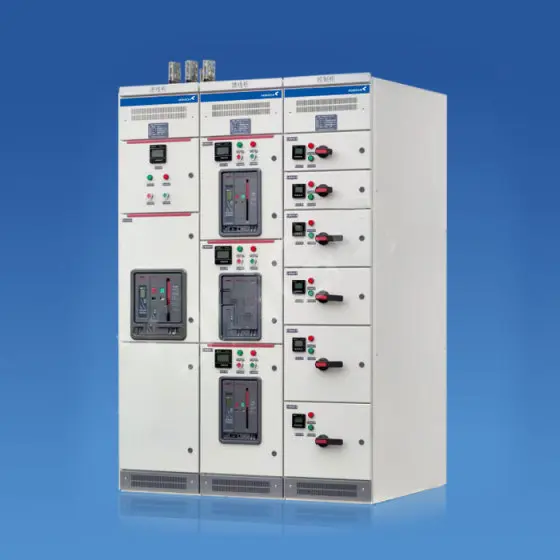

Schneider BlokSeT 5000

Continues Schneider Electric's advanced technical experience in the field of low-voltage electrical and low-voltage complete sets · Tailored to meet the needs of the Chinese market and customer usage habits · Suitable for applications such as distribution protection, motor start&protection, and reactive power compensation

Send Inquiry

Product Description

Schneider BlokSeT 5000
· Continues Schneider Electric's advanced technical experience in the field of low-voltage electrical and low-voltage complete sets
· Tailored to meet the needs of the Chinese market and customer usage habits
· Suitable for applications such as distribution protection, motor start&protection, and reactive power compensation

General data

Applications	distributing
Applications	motor control
Reference standard	GB7251.1/12
Installation location	indoor
Operating ambient temperature (℃)	-5 to 40
Operating ambient humidity (40 ℃)	≤50%
Altitude (m)	≤2000

Electrical parameters

Rated working voltage (V AC)		400
Rated insulation voltage (V AC)		1000
Rated impulse withstand voltage (kV)		12
overvoltage category		IV
pollution degree		3
Rated frequency (Hz)		50/60
Horizontal bus	Rated current (a)	5000
	Rated short-time withstand current (ka/1s)	42/50/65/85/100
	Rated peak withstand current (KA)	88/105/143/187/220
Vertical busbar	Rated current (a)	2350
	Rated short-time withstand current (ka/1s)	30/50/65
	Rated peak withstand current (KA)	63/105/143
Grounding system		TT-IT-TNS-TNC
Maximum incoming/outgoing switch (a)		5000
Maximum motor capacity (kw)		160
Reactive power compensation (kvar)	natural ventilation	200
	force-ventilate	400
